열흡수원과 12LED 5050SMD 20W 30W 주도하는 가로등 모듈

2x6 12 LED 5050SMD 20W 30W Street light module with heatsink 200x72x40mm

Quick Detail:

Model No:SUN-LD2X6CR145x70-TPIII-M-V

Material: PC

Beam Angle : 145X70 degree

Lens size:173X71.4X7.51mm

Heatsink size:200x72x40mm (20-30w)

Circuit: 2 series 6 parallel 48v output / 12 LED in parallel 24v output

Led chips:5050SMD LED 24V white color, 3000-6500k

Lense array of 12 LEDs

Small footprint, high light output

Features :

1. This SKD 12 LED Array lens with PCB Module is best choice to retrofit the old lamps 10-30W or design power lamps.
2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3. Industry-leading thermal management utilizing technology
4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5. The LED retrofit kits contain no any mercury or lead.
6. Does not produce UV rays that harm people’s eyes.
7. Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like

   129X55degree ,60X60 degree ,12 degree ,30X90 degree ,30degree ,90 degree,60 degree, 145x53 degree,150x80 degree,157x57 degree,160x63 degree, 157x81 degree, etc.

.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

Shipping and delivery time:

2x6 LENS Dimensions And Beam pattern:

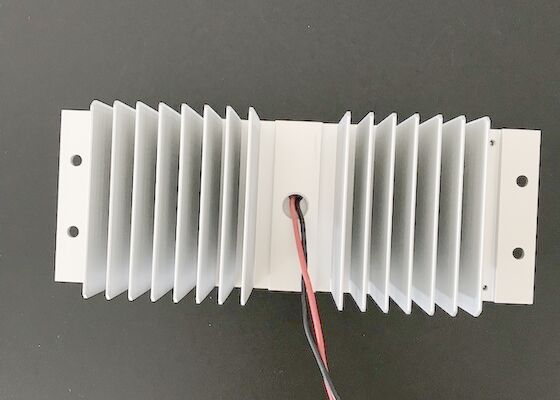

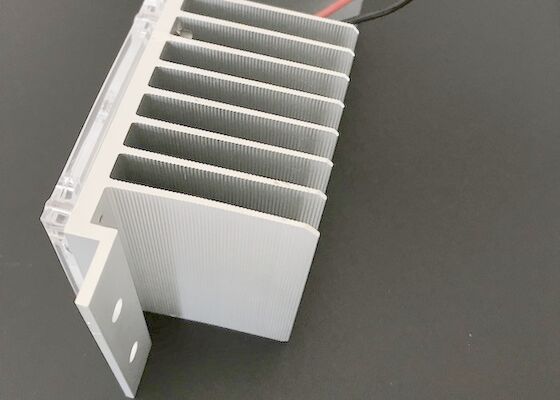

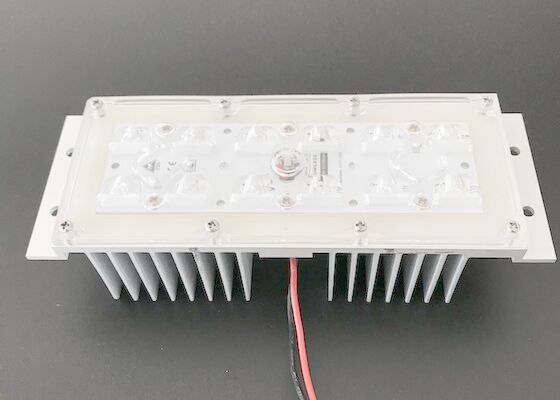

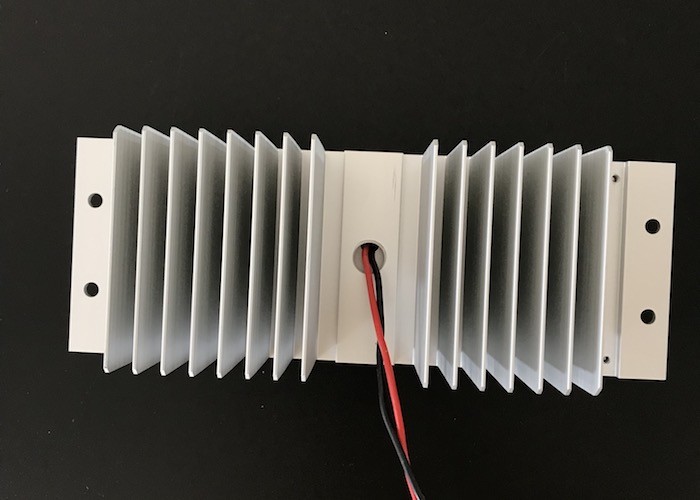

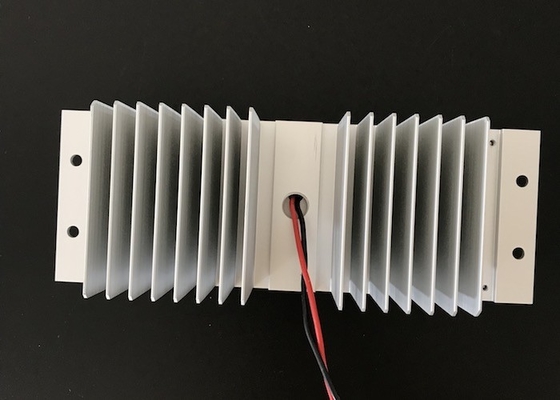

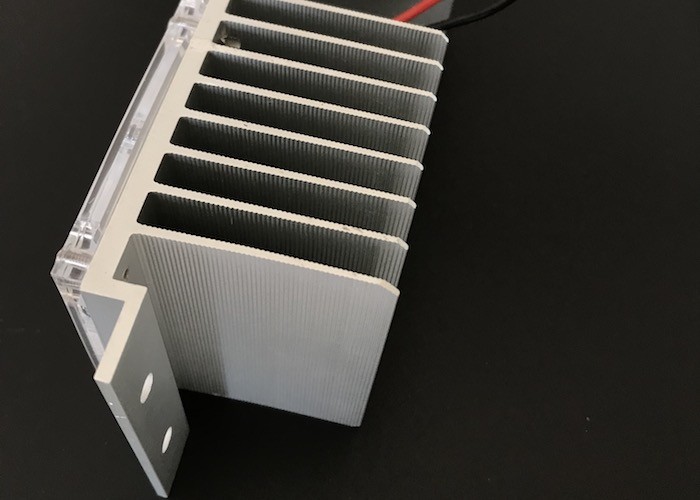

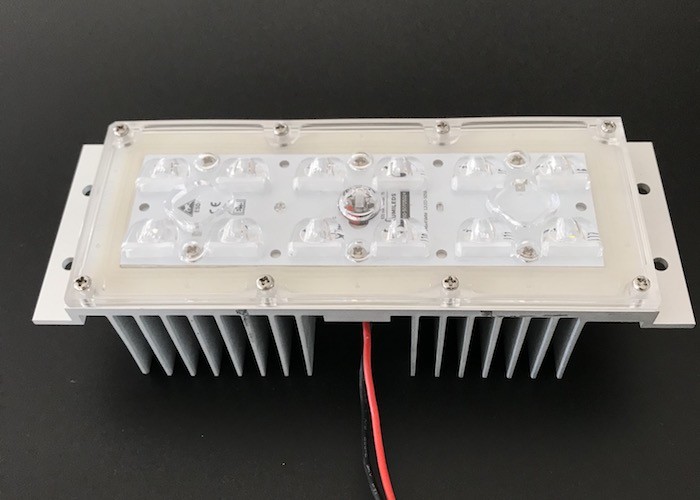

LED module with heat sink:
